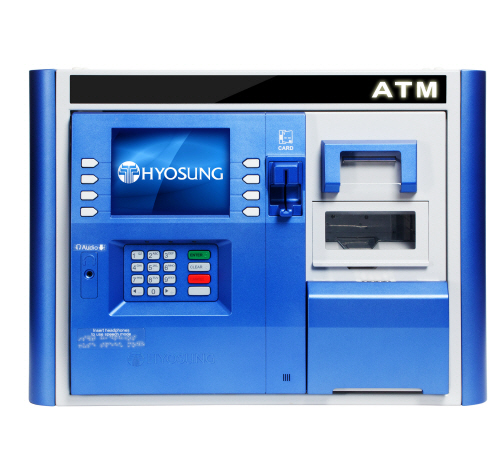

MX4000W

Advantage

COMPACT SIZE

The 4000W can be mounted to a wall using the sturdy steel brackets included with every ATM or optionally mounted on a table or counter-top. The 4000W provides a full set of features in a compact package and sets the standards for innovation and convenience for small spaces.



CAPACITY

A significant advantage of the 2700T ATM is its high-capacity note storage able to accomodate up to three removable cassettes to make managing your cash easier.

INNOVATIVE DESIGN

The 4000W provides unsurpassed convenience to all users by providing an intuitive graphical user interface through an 8-inch color LCD screen. The 4000W was designed with speed and ease-of-use in mind so you can get rapid transaction processing and speedy service.



MAXIMUM RELIABILITY

Ease of maitenance and simplified service ensure maximum availability and uptime with minimal operational intervention.

ADVANCED TECHNOLOGY

EMV- ready configurations are avaliable now for Canadian customers. US customers can order EMV as an option and easily enable the feature as soon as processors offer support without changing machines or components. The 4000W will also support Nautilus Hyosung’s advanced function applications such as Dynamic Currency Conversion and MoniView Remote Management Software.



MX4000W
MX4000W

Specification

System Platform

•Microsoft® Windows® CE 6.0
Power Supply

•AC 110-240 V, 50-60HZ
Communication

•TCP/IP, Dial-up
Card Reader

•Dip type card reader
•IC Card Reader (optional)
•Anti-Skimming (optional)
Security

•Electronic Lock
Cash Dispenser

•500 note removable cassette*
•20 note reject box*
•Cash tray illumination*
Screen Display

•8″ color TFT LCD



Specification

Input Type

•8  function keys
•PCI Compliant EPP
•RKT (optional)
Additional Features

•Audio jack
•EPP Illumination
•Retractable door handle
•Speaker
•Braille Keypad
•Digital receipt
•Electronic journal
•Supports six languages:
English, Spanish, French, Japanese, Chinese, Korean
•Enhanced Standard 1(Hyosung Standard)
DCC (Dynamic Currency Conversion)
Printers

•2″ Graphical thermal receipt printer
Environmental Conditions

•Temperature: 5°C-35°C(41°F-95°F)
•Humidity: 20-85°%
Dimensions

•Height: 18.8″ (478 mm)
•Width: 25.3″ (643 mm)
•Depth: 8.7″ (222 mm)
•Weight: 110 lbs (50 kg)
